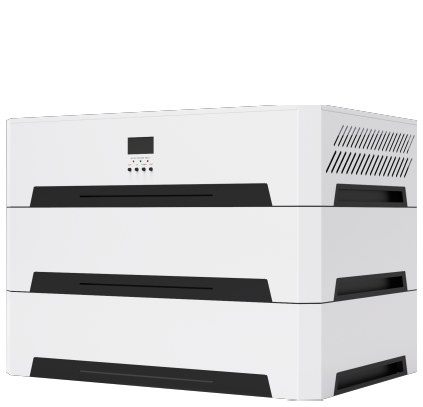

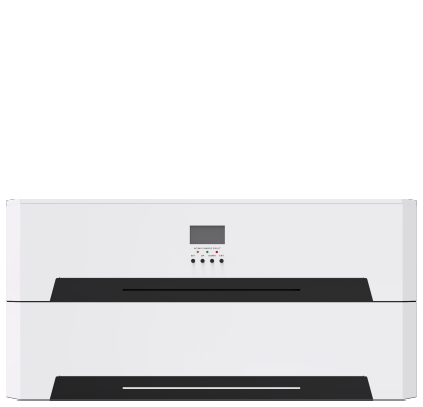

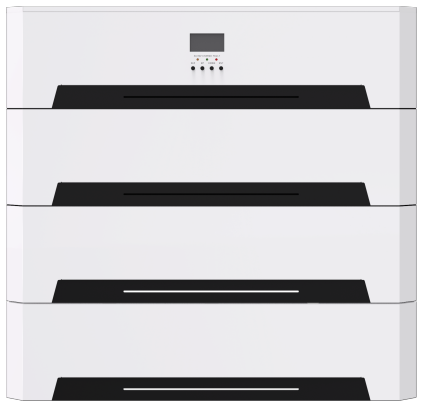

Household Energy Storage
Lithium iron phosphate (LFP) battery, high safety, long life.
Supports self-use/off-network/hybrid output mode.
Peak-valley price time-sharing charge and discharge.
Intelligent BMS for comprehensive protection.
Safe and reliable
Uses lithium iron phosphate battery cells for extended lifespan
Expandable installation
Quick and easy installation with the ability to easily expand
More capacity
High efficiency and high power density
Environmentally friendly
Environmentally friendly and pollution-free
Product Specification
Model | GB5000-ESB | GB10000-ESB |
Performance | ||
Rated Capacity [kWh] | 5 | 10 |
Rated Voltage [V] | 51.2 | |
Charge Cut-off Voltage [V] | 58.4 | |
Discharge Cut-off Voltage [V] | 43.2 | |
Charge/Discharge Current [A] | 100 | |
General Parameters | ||
Charging Temperature | 0 °C to +55 °C | |
Discharging Temperature | -20 °C to +60 °C | |
Storage Temperature Range | -10 °C to +35 °C | |
湿度范围 | 5% to 80% | |
Dimensions(WxHxD,mm) | 600 x 555 x 224.5 | 700 x 580 x 225 |
Weight [kg] | 50 | 85 |
Installation Type | Wall-mounted | |
Protection Level | IP53 | |
Battery Type | Lithium Iron Phosphate (LFP) | |
Cooling | Natural Cooling | |
Communication | RS485/RS232/CAN | |
* For conditional applications, please refer to the battery warranty manual. | ||
